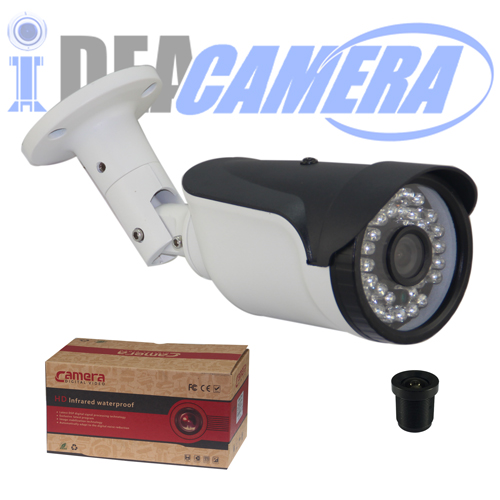

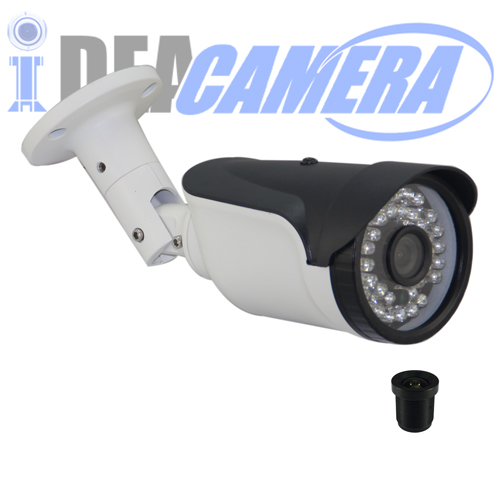

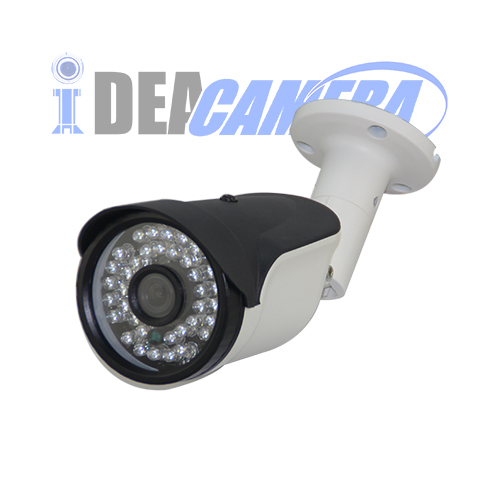

2MP IR Waterproof Bullet HD AHD Camera, Low illumination, AHD/TVI/CVI/CVBS 4IN1, Support UTC Control.

2020-5-22 16:05:04, Visits:
Product Model: RC-​BF60CA-2F
FOB Price: US$9.6-US$10.6
Min. Order: 1pc
Product Brand: IdeaCamera
OEM/ODM: Support
Warranty: 2 Years
Country of Origin: China
Certificate: CE,FCC,ROHS
PDF:

Inquire Now >

Model Number: RC-BF60CA-2F

Main Features:

White casing with strong bracket

36pcs 5 IR LEDs(30M IR Distance).

Metal+ glass strong lens.

2MP 3.6mm HD Fixed Lens (2.8mm,4mm,6mm,8mm optional).

BNC Interface Video Cable (OSD optional).



Key specifications:

Image sensor (F23+FH8536H DSP)

Output AHD/TVI/CVI/CVBS, Effective resolution is up to 1920*1080/960H.

OSD menu supports 12 different languages.

Lightning protection, Strong light inhibition/privacy protection.

BLC/DPC, 2D noise reduction function.

OSD function (mirror image, color/ white-black, PAL/NTSC).

UTC Function (Working by Hybrid DVRs).

AGC type, day-night effect is distinct, various day-night modes can be switched by OSD menu

With D-WDR.

Support UTC, 4-in-1, switched by OSD, Enhancement adjustment supported by OSD.

Power 600W&Video2KVdual-lightning protection design, OSP antioxidant PCB, size 32*38

Dual-border.



Production Advantages:

Offer 2-years product warranties.

Logistics convenient.

OEM/ODM.

CCC/CE/FCC Certified.

Strict product quality control.

Efficiently working with almost HD Hybrid DVRs.

Lower price.

6-8 working day per order.



Production applications:

This is the best product of safety field. It and hard disk video recorderscablepower supplydisplayetc. Constitute a complete security system. Tts application is more extensive. Such as homesfactorieshighwaysoffice buildinggardencommunity, or a large public places, etc.


Descriptions

2MP HD AHD Camera Module

Sensor

1/2.9inch CMOS F23+FH8536H DSP

Video Resolution

1920(H)*1080(V)

Effective pixels

Approx.2.07M pixels

Signal system

PAL/NTSC (Switch by OSD Menu)



Minimum Illumination

color0.01Lux@F1.2AGC ON),0Lux with IR


Black & White0.001Lux@F1.2AGC ON),0Lux with IR

S/N   Ratio

≥41dB

BLC

AUTO

Shutter

1/50(1/60) seconds to 1/50,000 seconds

AWB

AUTO

Lightning protection

supported

IR   Control Input Voltage

OFF (DC OV)/ ON: DC 3V-8V

Video   Output

AHD/TVI/CVI/CVBS

OSD menu   (12)

English/Simplified   Chinese/Traditional Chinese/German/French/Italian/Spanish/Polish/Portuguese/Dutch/Turlish

Video   record occupation

1min≈24mb (4mm lens)

Working   Voltage

DC 12V/76mA±6mA (wide voltage 9v-18v)

D/N Function

External (Default)/Auto/Color/White&Black   (Switch by OSD Menu)

Synchronous Mode

inter-sync

Temperature and Humidity

- 20 ℃ ~ 50 ℃, humidity   is less than 90% (no   condensation)

Size

Standard 32*38   positioning hole

Accessories

 AHD Camera Manual, warranty   card/certification, 1 dryer
