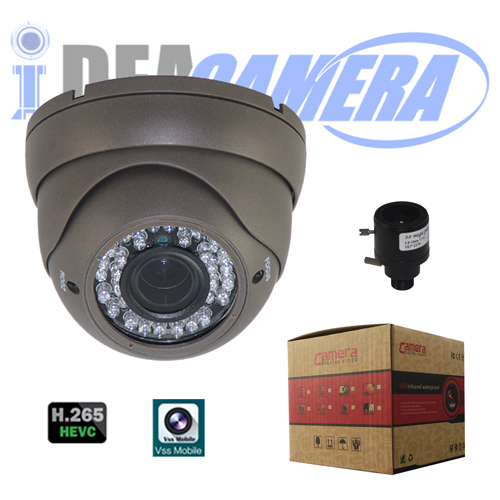

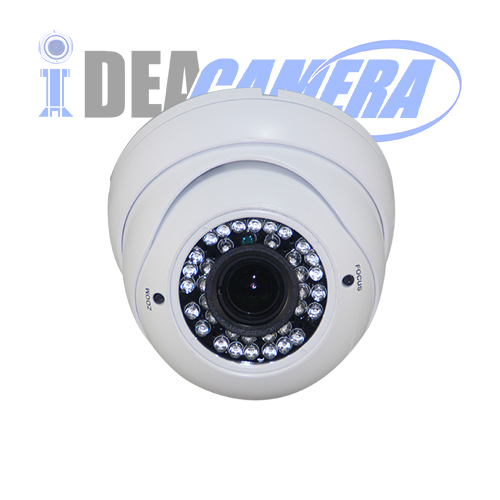

4MP H.265 Varifocal IP Dome Camera with Audio In,Internal POE,VSS Mobile APP,P2P

2019-5-29 14:24:43, Visits:
Product Model: RC-DVM75C-4MPV-P-A
FOB Price: US$41.01-US$43.01
Min. Order: 1pc
Product Brand: IdeaCamera
OEM/ODM: Support
Warranty: 2 Years
Country of Origin: China
Certificate: CE,FCC,ROHS
PDF:

Inquire Now >

Model: RC-DVM75C-4MPV-P-A

Key features:

3MP 2.8-12mm HD Varifocal Lens.

White/Dark gray all metal body.

Built-in 36pcs IR LEDs.

Support 30 meters IR distance.

Internal POE with audio input.

High quality network video cable with waterproof sleeve.



Main parameters:

32-bit DSP (1/3"CMOS OV4689+Hi3516D Sensor).

2560*1440@20fps High resolution.

Support Face Detection (all channels in VSS system).

Mobile APP Name: (VSS Mobile).

Computer operation client (IMS300).

Support ONVIF protocol (up to 2.6).

H.265/H.264 high profile.

Support Tri-Stream technology.

Support one channel audio input, one channel audio output, support two-way voice speaking.

Support one channel alarm input, one channel alarm output.

Support one TF card interface, the maximum up to128G.

Support one electric zoom interface.

Support one 485 interface.

Support one USB interface.

Support one CVBS output.

Support SMART IR.

Support 3D DNR, DWDR.

Support P2P and cross-browser access.



Product Advantages:

Offer 2-years product warranties.

Logistics convenient.

OEM/ODM.

CCC/CE/FCC Certified.

Strict product quality control.

Efficiently working with almost NVR and HD Hybrid DVRs.

Lower price.

6-8 working day per order.



Product applications:

The security products is widely used in many fields, in the office building, private villas, personal family and some public places (Park, street, square, etc.) can be used easily used to build and maintain, it will give you create a safe and comfortable environment.


4MP   Economical Single-Boards IP Camera Module

Product   model

RC-DVM75C-4MPV-P-A

System   Structure

DSP

Embedded   RTOS, DSP(Hi3516D)

Sensor

1/3"   CMOS sensor (OV4689)

Video   Encoding

Video   Encoding

H.265   Main Profile

H.264HighProfile/   Main Profile/ BaseLine Profile

Maximum   Image Output

Main stream2560*1440@20fps;

Auxiliary   stream one and two can optional

Video   Bite rate

32Kbps~8MKbps

Image   Enhancement

Min.   illumination

Color 0.1Lux@F1.2AGC ON);

black   and white 0.05Lux@F1.2AGC ON

Electronic   shutter

Auto1/25 to 1/10000

Day/Night   switch

Auto/color/B&W Built-in IR_CUT

DNR

2D and   3D DNR

WDR

Support   digital wide dynamic and REAL wide dynamic

Video   Adjust

Sharpness,   Brightness, Saturation, Contrast Adjustable

Interfaces

Signal   interface

one   photosensitive resistance signal interface,

one   IR_CUT drive interface

support   photo resistance signal links to IR-CUT and IR light

Smart   IR

One   port

Reset interface

One   port

Audio   interface

One   audio in; One audio out

Alarm   interface

One   alarm in

Power   interface

One   DC12V power input

CVBS   Interface

One   Port

USB   interface

One   Port

POE   interface

One   Extended Interface

Network   lamp interface

One   Port

Network   interface

One   RJ45 10/100M Port

Functions

Motion   detection

Multiple   detection zones, variable sensitivity levels

Capture   function

JPEG capture   resolution is the max coding resolution

Security

Password   protection and water marker

OSD

Support   Channel Name and Time

Smart   function

Perimeter   Intrusion Detection

Smart   alarm

Network   abnormal, cover alarm etc.

Mobile   client

VSSMOBILE   for both iPhone and Android system phone

Protocol   support

TCP/IPUDPHTTPIGMP ICMPDHCPRTP/RTSPDNSDDNSFTPNTPPPPOEUPNPSMTPSNMP

Interface   protocol

ONVIF/CGI

General

Power   Supply

DC12V/POE(-P)

Power   Consumption

<1.7W   (without infrared lamp board)

Lightning   Protection

Power,   network, POE all lightning protection,

meets   with standard GB/T17626.5and   IEC61000-4-5

Size

38*38mmSingle   Board
